Short product description:
IVY PH-009A is a water PH acidity level meter. This is a portable device that uses a battery (included). IVY Aqua 02S is a professional instrument for measuring PH level, salinity from 0.00 - 14 PH (calibrating powders included - in packets) It has high performance, pen-type design, fast numerical stability and accurate result.Universal for Garden, Aquarium, just a water, WIne etc..Electronic water acidity (pH) meter with ATC function (liability of liquid temperature during measurement). Equipped with a clear LCD screen, physical switch and calibration buttons. The comfortable protective cap also indicates the level of immersion of the tester. The automatic shut-off function saves battery power. The device is very easy to use (just immerse it in the water to the entire scale and read the readings on the screen). The kit includes bags for standard solution preparation (to make it easier to calibrate the tester).
Specification:
- Material: plastic
- Power supply: 2 x LR44 1.5V batteries.
- Clear LCD screen
- Physical switch and calibration buttons
- Protective cap showing the maximum level of immersion.
- Automatic shutdown function (battery saving)
- The ATC function – increases the accuracy of the measurements depending on the water temperature.
- Measurement range: 0.0–14.0 pH.
- Measurement resolution: 0.01 pH
- Accuracy: 0.01 pH when calibrated to pH 4.01/6.86 pH/9.18.
- Accuracy in other ranges: approximately 0.1 pH.
- Dimensions: 15.5 cm x 3.1 cm x 1.8 cm.
- Color: yellow-black
Electronic pH meter
Automatic pH water level meter with a large, easy-to-read display. This allows for a quick estimate of the pH reagent level. The device is compact in size, so it is easy to use in various conditions. The measurement accuracy within 0.01 and the measurement time of about 1 second make the device easier to use.
The device can be used:
- • Determination of pH of different liquids
- • Aquaculture
- • Gastronomy
- • Agriculture
- • Food industry
- • Chemical industry
- • To check the quality and suitability for use of glycol solar fluid
- The ATC function allows you to accurately determine the pH value regardless of the temperature of the liquid.
Measurement method
Remove the cover of the device. Crystals appearing on the surface of the electrode are a natural phenomenon and must be removed before measurement.
Immerse the device in water to the level indicated on the body. Mix gently, wait about 30 seconds and the display will stabilize.
When you're done, read the measurement. Do not forget to dry the device after each measurement. You can protect the electrodes with a special electrode storage fluid.
ATTENTION! If readings differ for the same fluid, calibrate the meter using the solutions provided and the calibration button on the body. A description of the calibration can be found in the user manual of the device.
pH meter calibration
- 1. To open the calibration powder, add 250ml distilled or pure water (do not use tap water or mineral water). Dip the pH electrode into standard mixed phosphate buffer pH 6.86 and shake gently.
- 2. Press the CAL button, automatic calibration will occur until the displayed value and the standard pH 6.9 buffer solution match the ambient temperature.
- 3. As above, the electrode was placed in a standard potassium bicarbonate phosphorous acid buffer solution pH 4.01.
- 4. About two minutes or so. The displayed value must be within the error tolerance compared to the pH value of the buffer solution.
Device description
- LCD display
- Power button
- Automatic calibration button

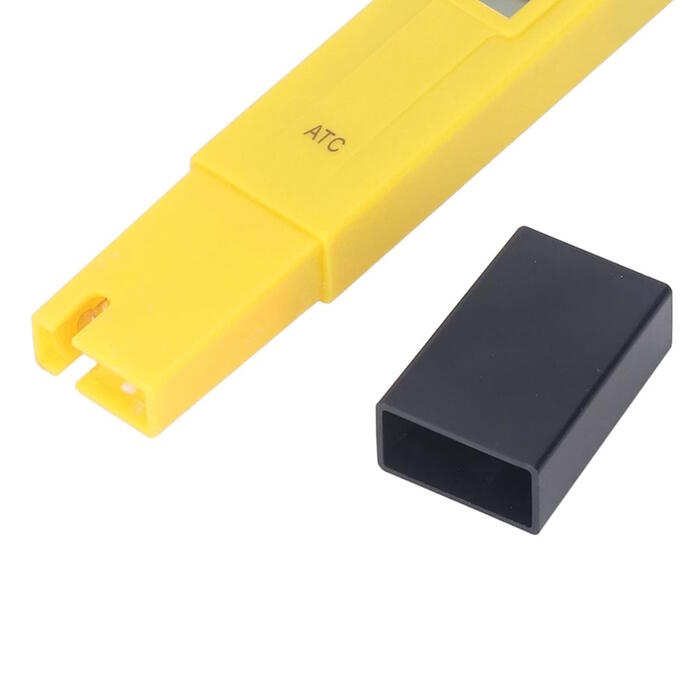

- Plastic Protective Cover
The set contains - • PH meter + batteries
- • 2 250 ml reagent set for calibration (ph 4.01, ph 6.86, ph 9.18)
